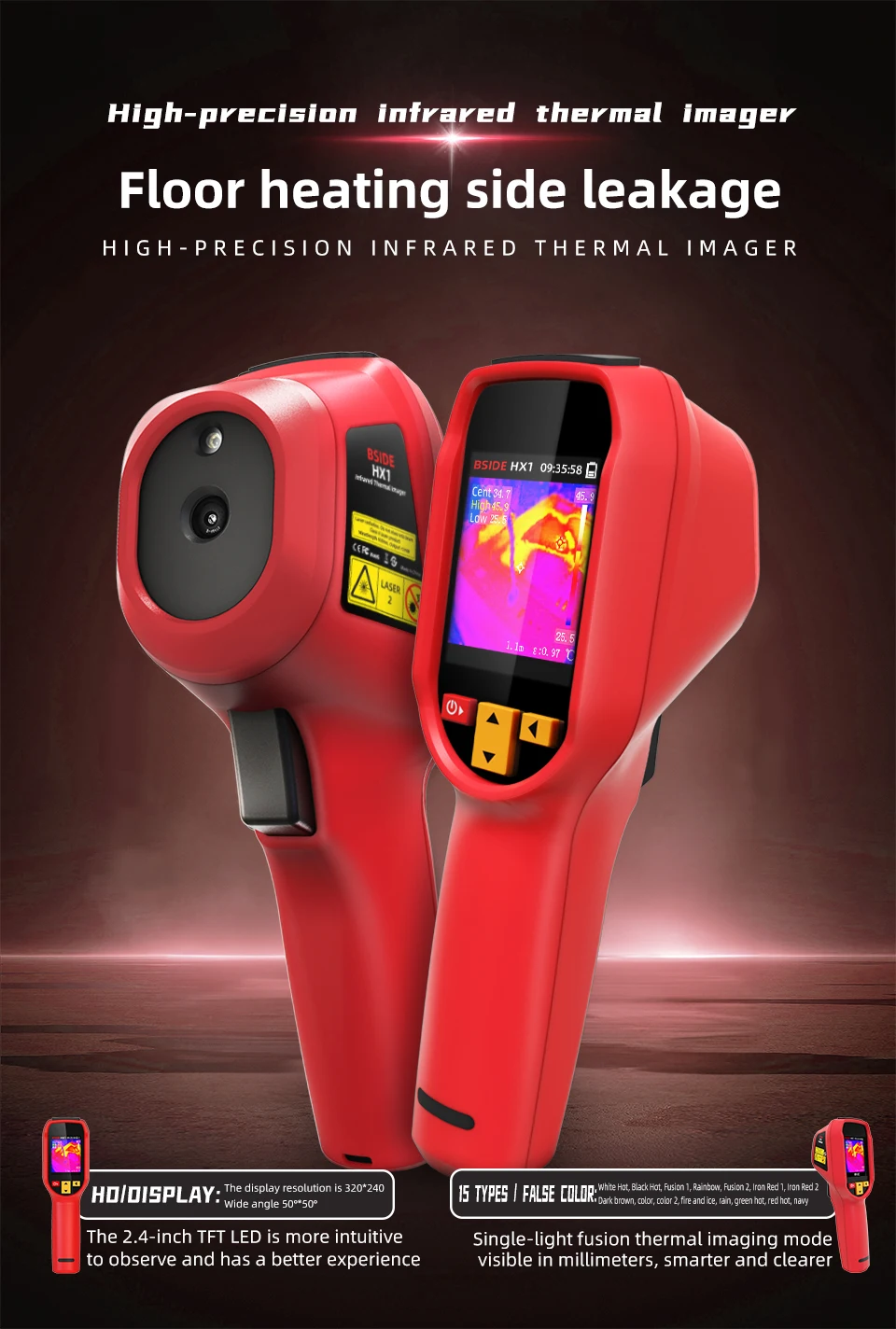

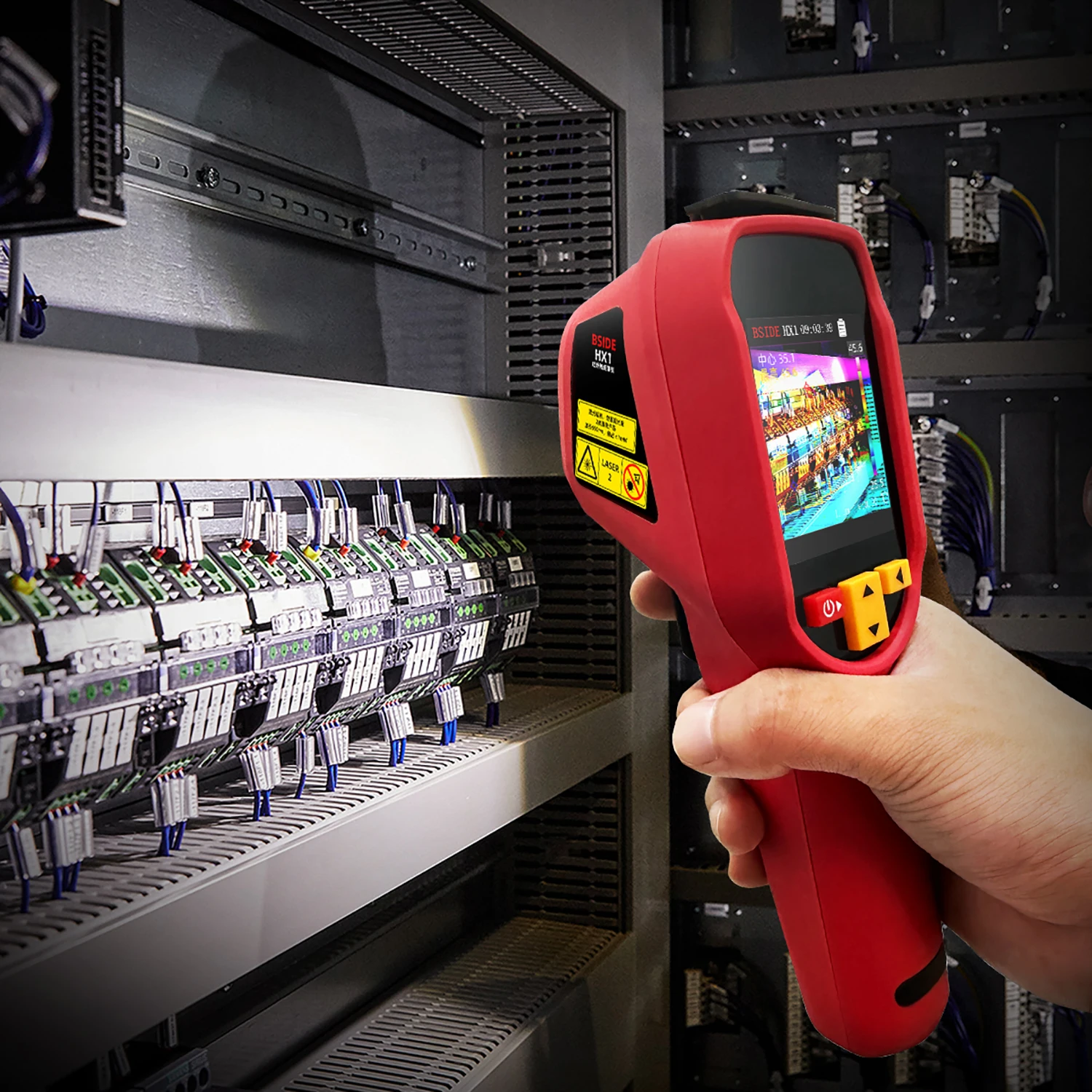

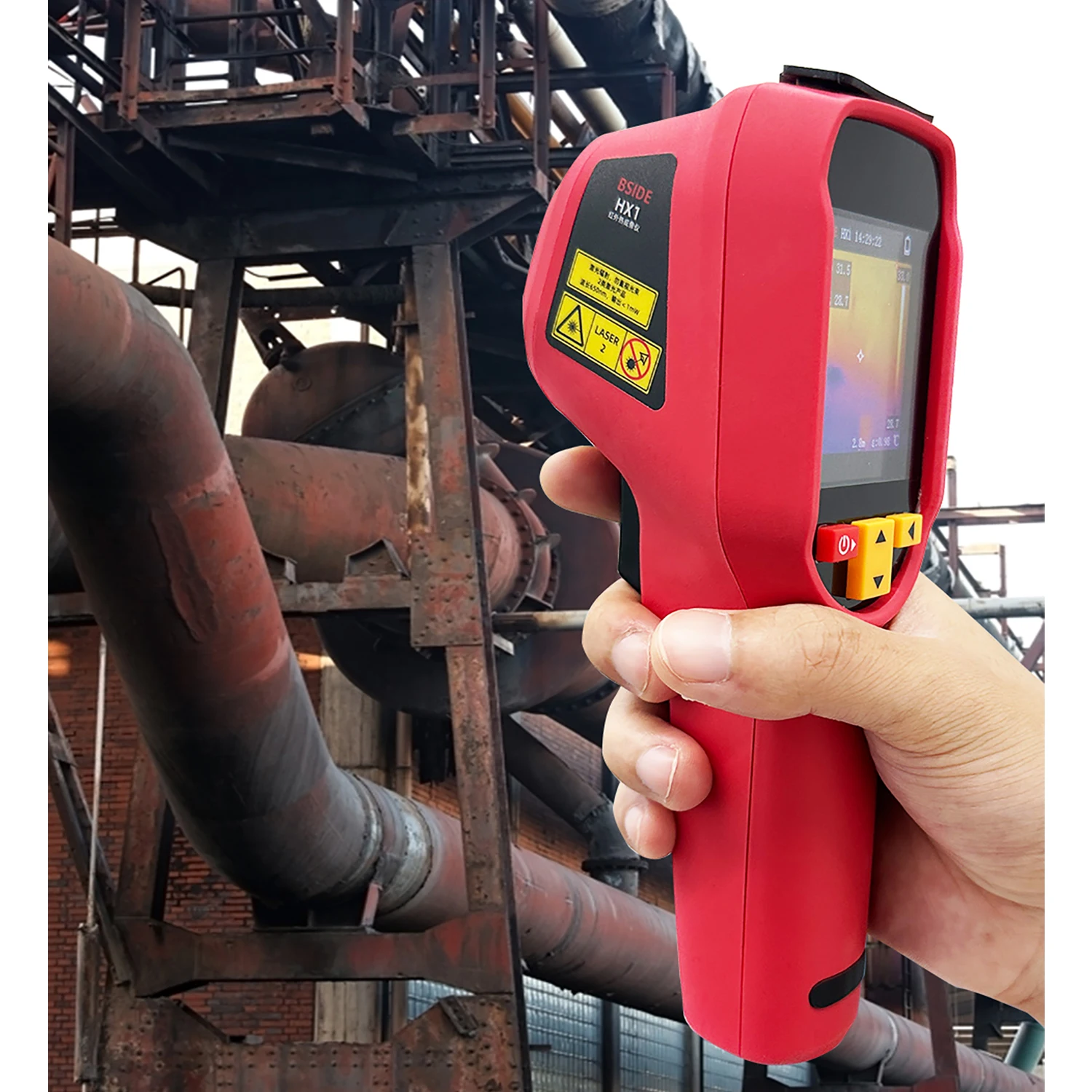

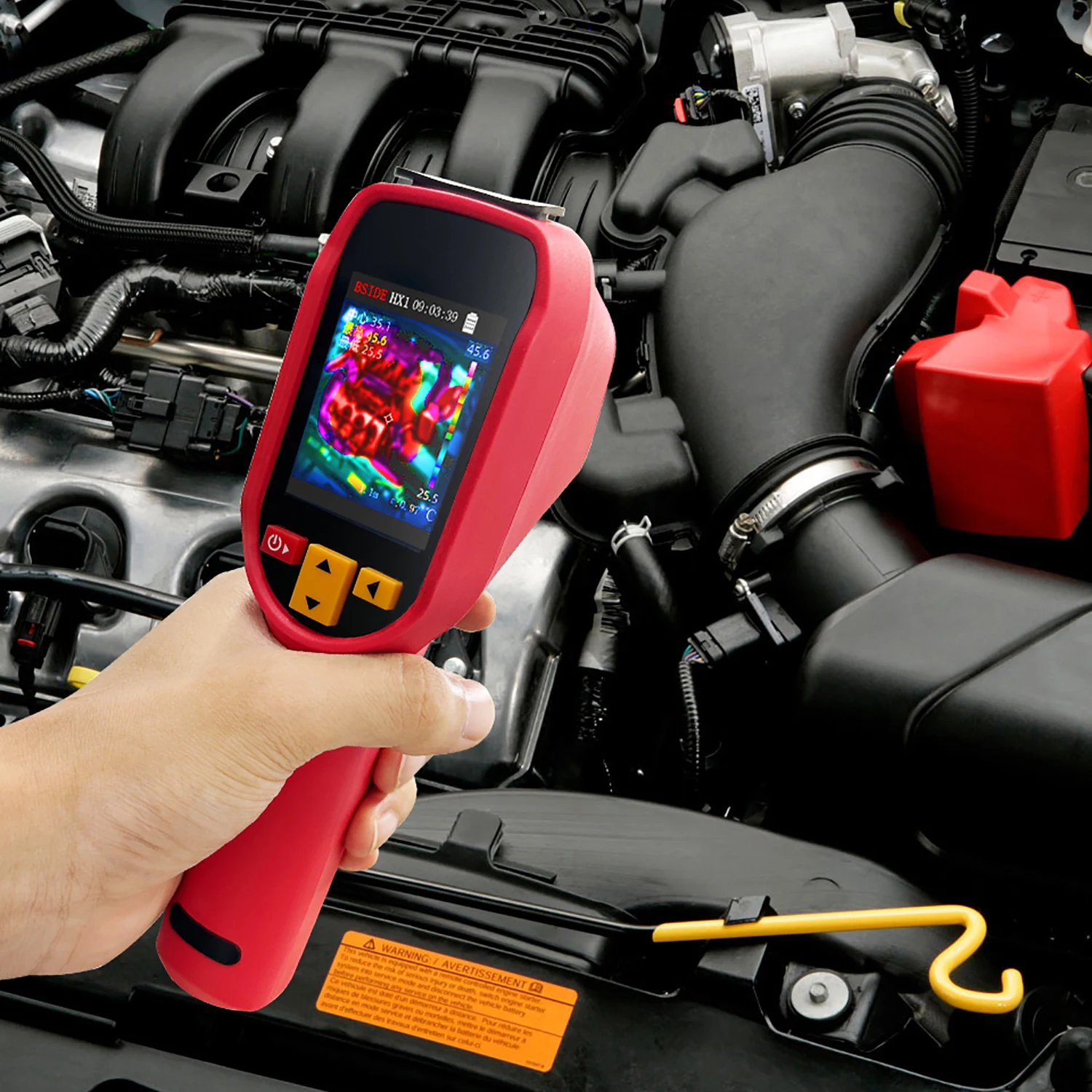

BSIDE NEW Thermal Imaging Camera 240X240 Thermal Imager Infrared Temperature Meter For Repair PCB, Pipeline Detection
SPECIFICATIONS
Battery Included: Yes
Brand Name: BSIDE
Certification: CE,FCC
Display Size: 2.0 - 3.9 Inches
Hign-concerned Chemical: None
Is Smart Device: No
Maximum temperature: 550 ℃
Minimum temperature: -20 ℃
Origin: Mainland China
Style: Handheld
Thermal pixels: 320*240
Supports multiple languages: Chinese, English, German, Italian, French, Spanish, Japanese;
Buy early version HX1 buyers, or need to update the Russian language, can download language pack upgrade system through the following link: https://www.mediafire.com/file/vrcwjz3t738qelc/HX1-Update.rar/file

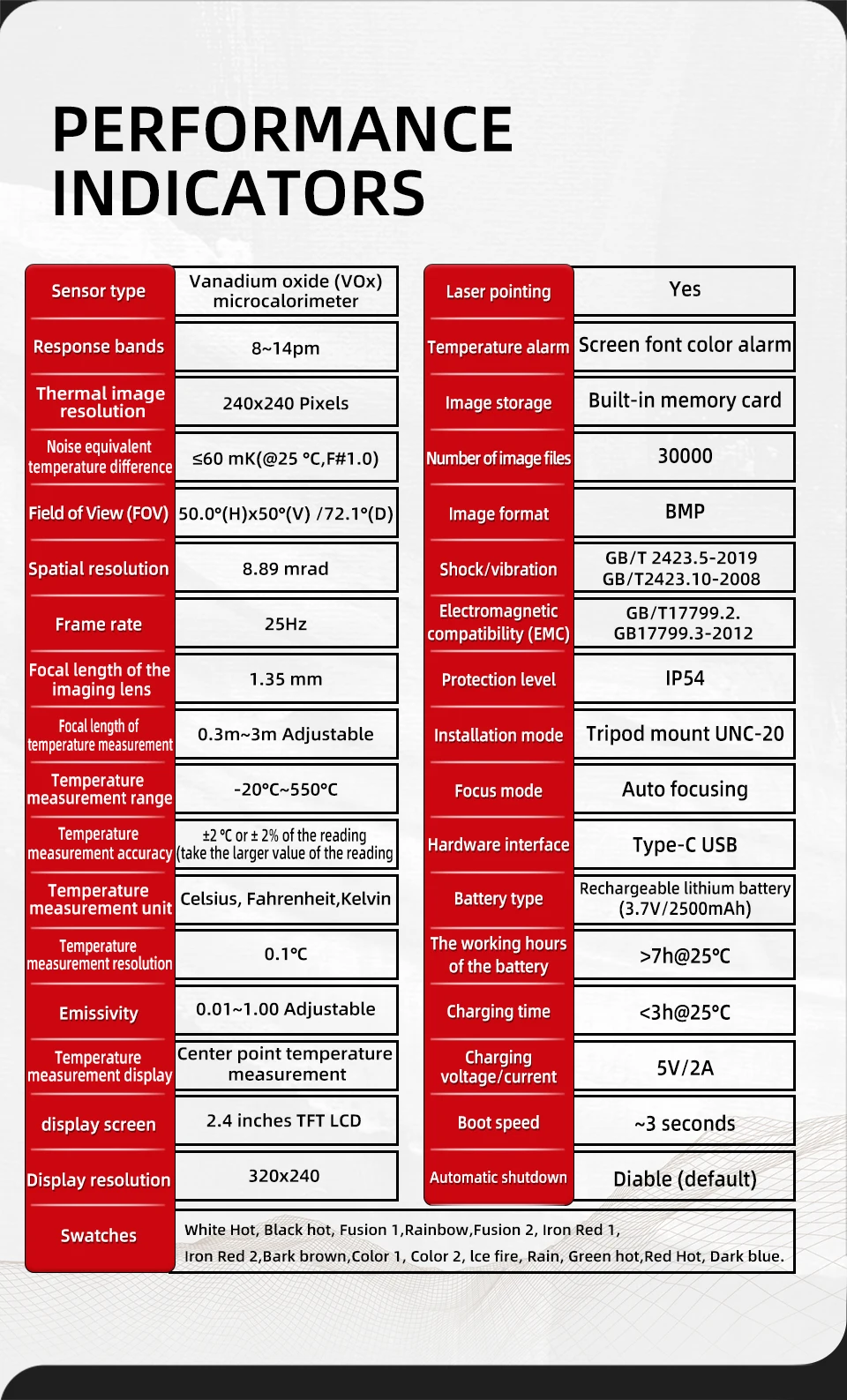

Performance Indicators | |

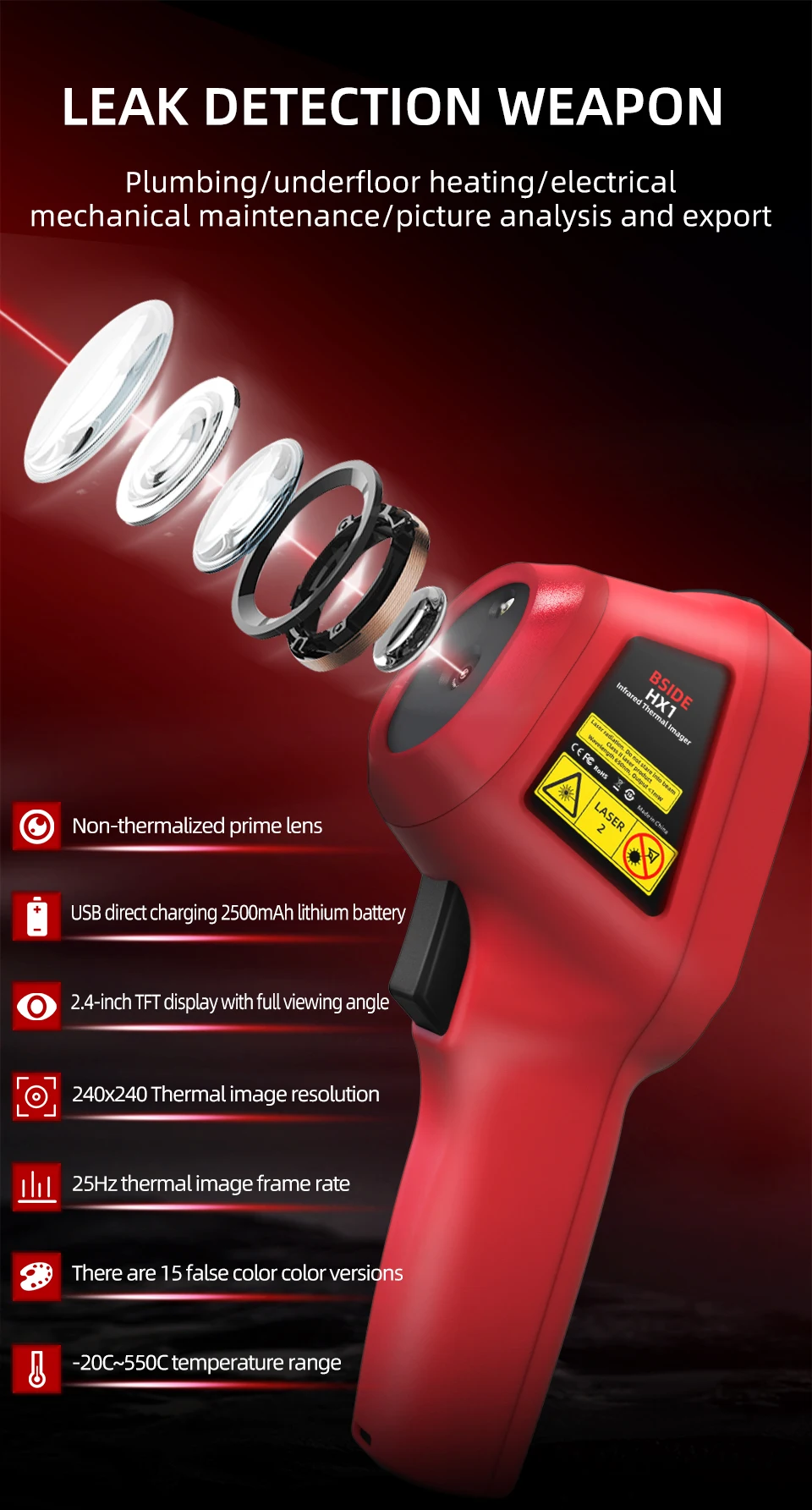

Sensor type |
Vanadium oxide (VOx) microcalorimeter |
Response Band |
8~14pm |
Thermal image resolution |
240x240 Pixels |
Noise equivalent temperature difference(NETD) |
≤60 mK(@25°C,F#1.0) |
Angle of view(FOV) |
50.0°(H)×50°(V)/72.1°(D) |
Spatial resolution (IFOV) |
8.89 mrad |
Frame rate |
25Hz |
The focal length of the |
1.35 mm |
Temperature measuring focal length |
0.3m~3m Adjustable |
Temperature range |
-20℃~550℃ |
Accuracy of temperature measurement |
±2℃ or±2%of the reading |
Unit of temperature measurement |
Celsius,Fahrenheit,Kelvin |
Temperature resolution |
0.1℃ |
Emissivity |
0.01~1.00 Adjustable |
Temperature measurement shows |
Center point temperature measurement, |

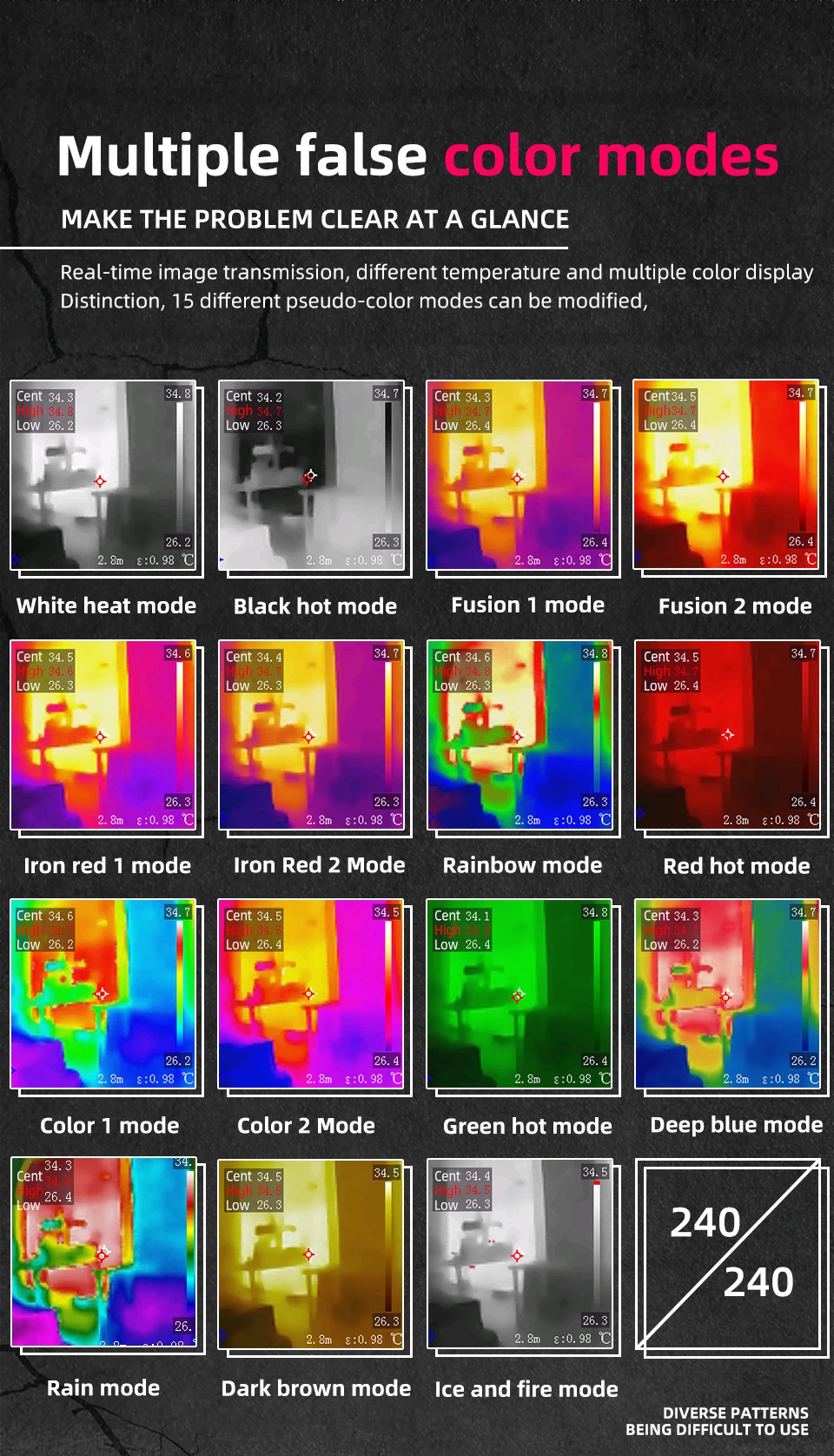

Swatches |
White Hot,Black hot,Fusion 1,Rainbow, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, |

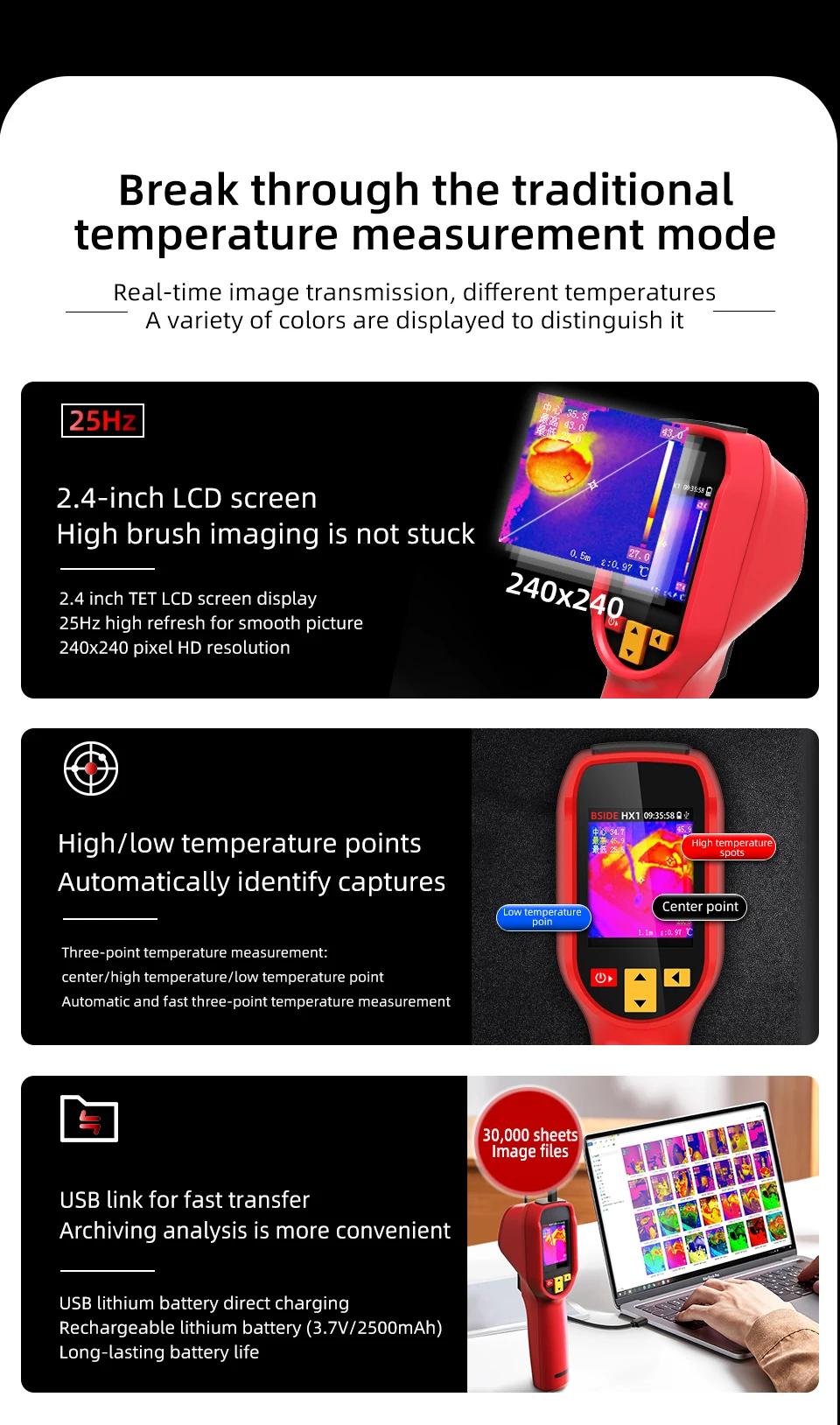

Display screen |
2.4 inches TFT LCD |
Display resolution |
320×240 |

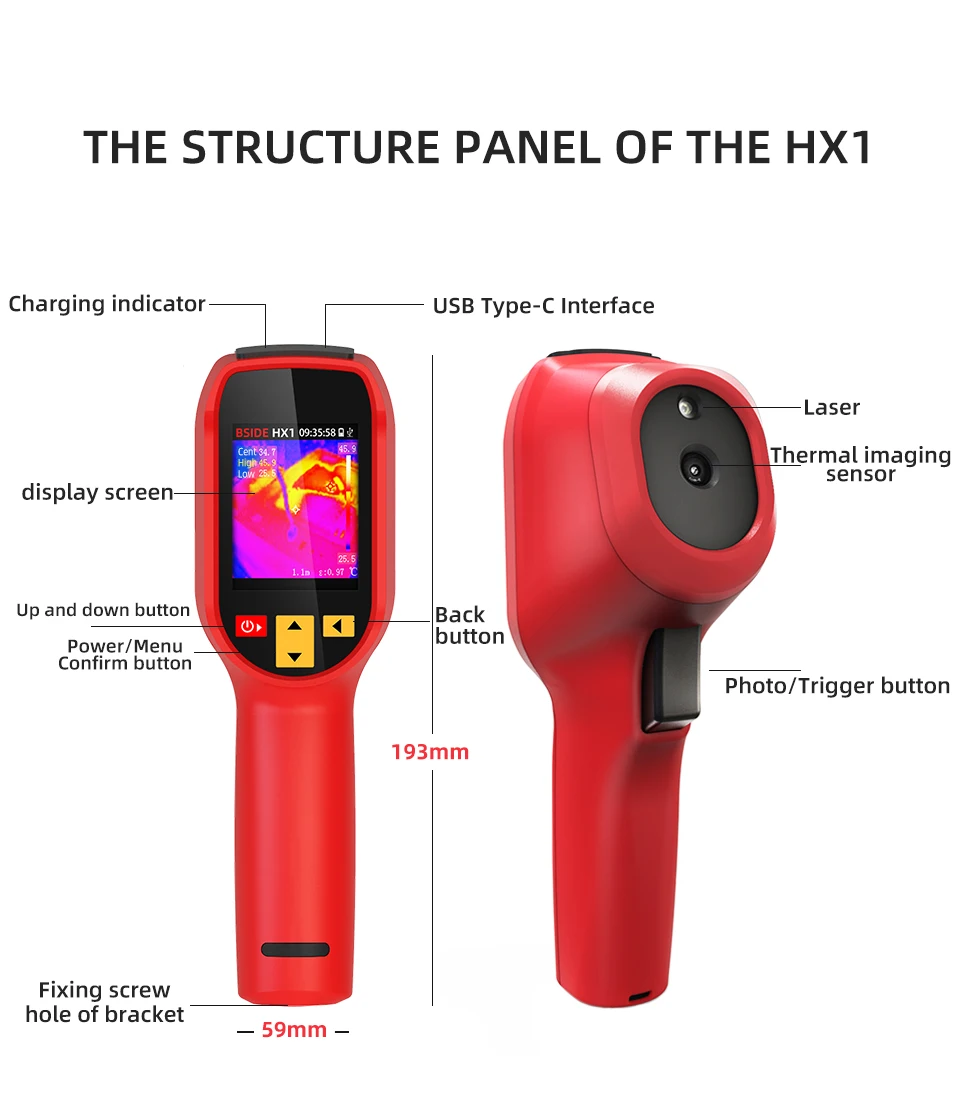

Key |
Power Key,up key,Down Key, |

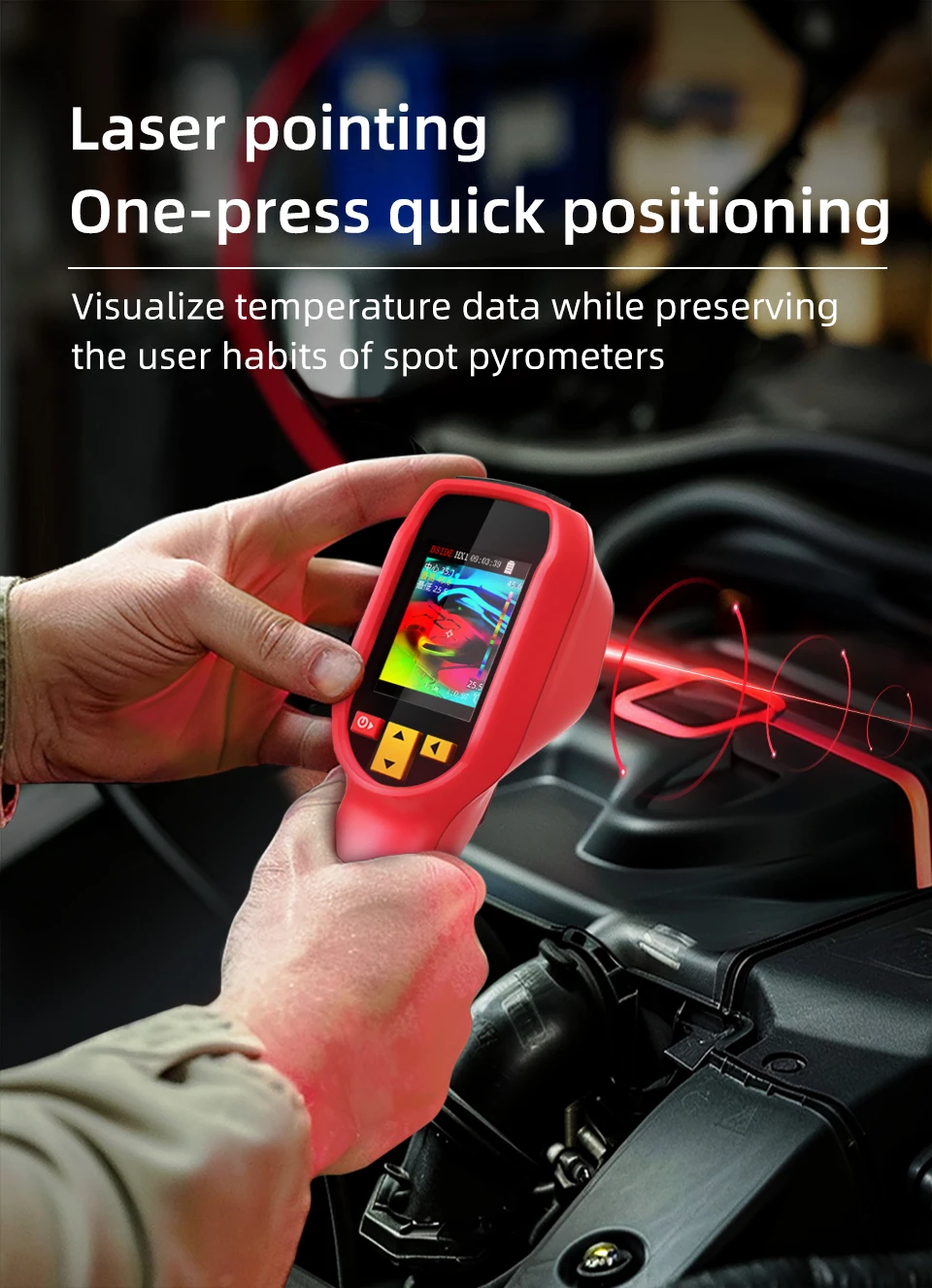

LaserPointer |
Yes |

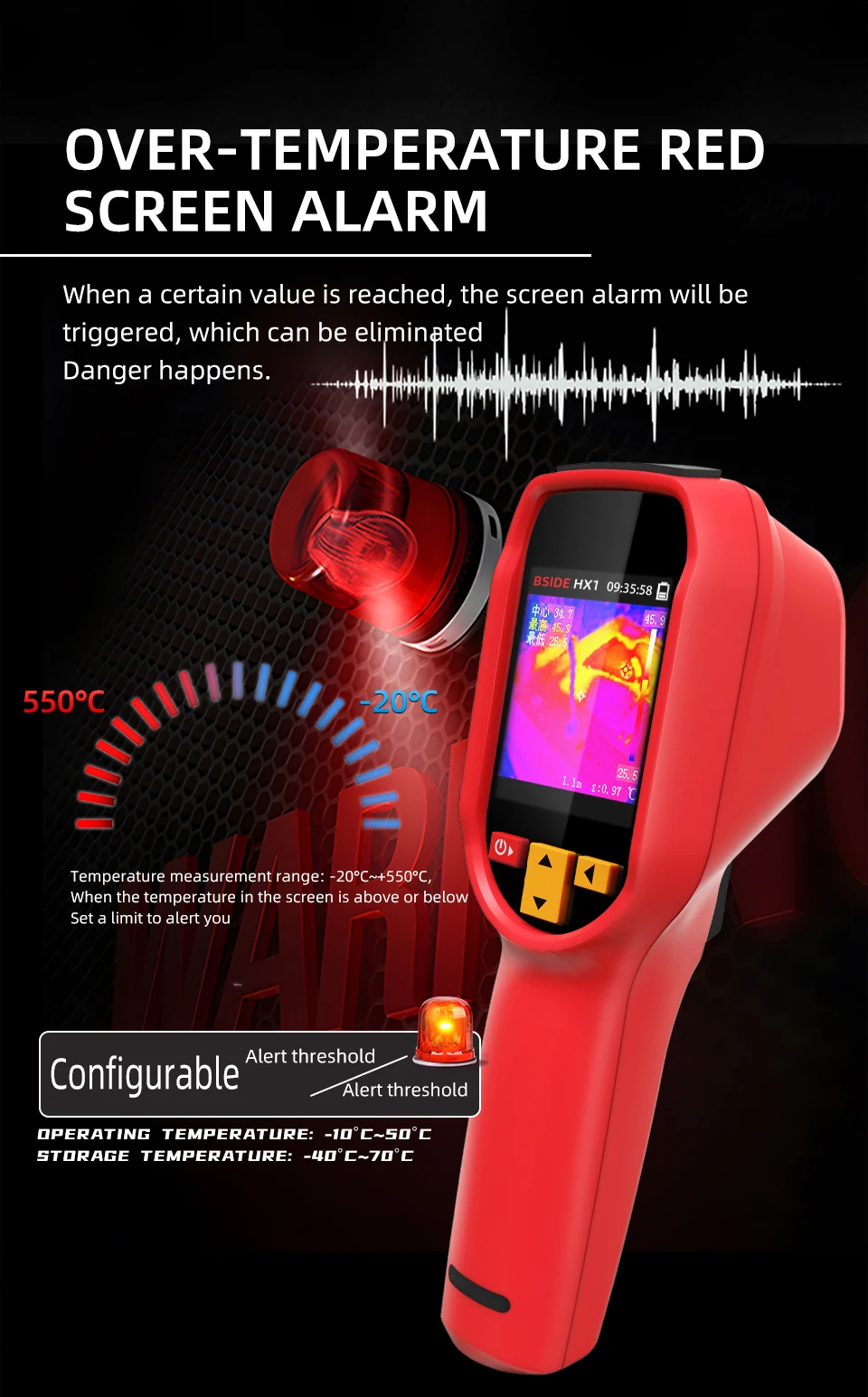

Temperature Alarm |
Screen font color alarm |
Image storage |
Built-in memory card |
Number of image files |
30000 |
Image format |
BMP |

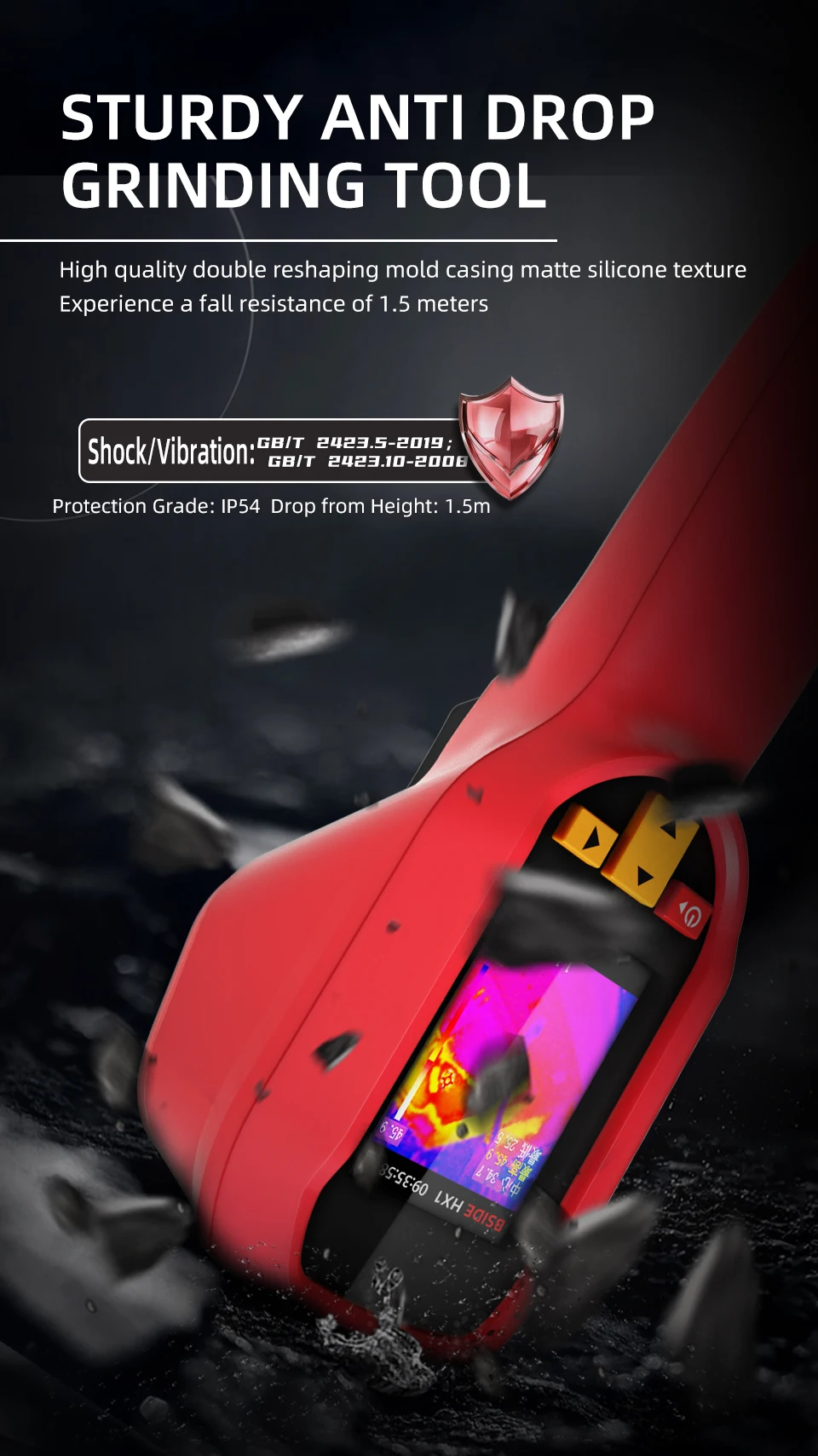

Shock/vibration |
GB/T 2423.5-2019;GB/T2423.10-2008 |
Electromagnetic compatibility(EMC) |
GB/T17799.2,GB17799.3-2012 |
Protection level |
IP54 |
Installation mode |
Tripod mount UNC-20 |
Focus mode |
Auto focusing |
Hardware interface |
Type-C USB |

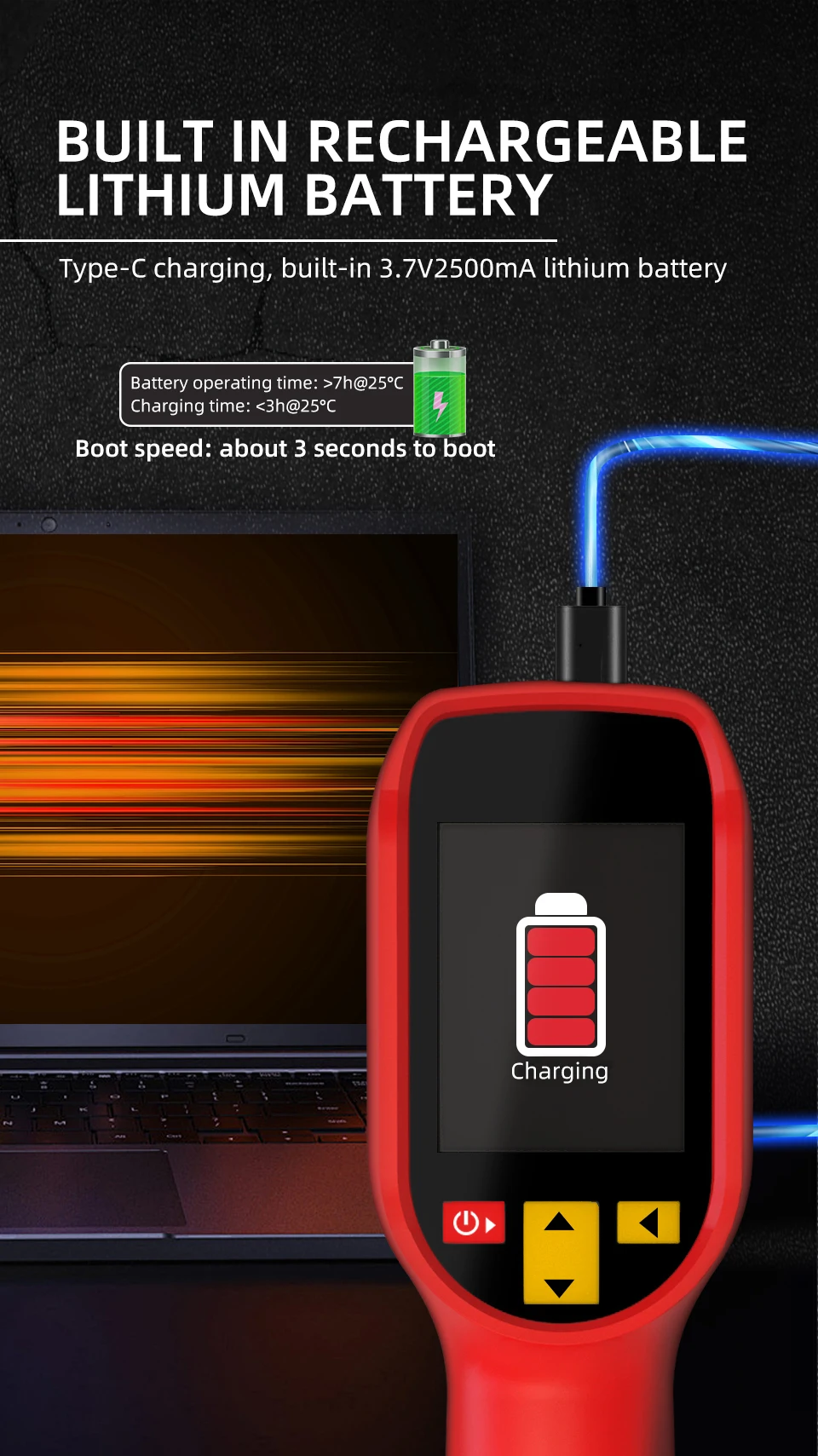

Battery type |
Rechargeable lithium battery |
The working hours of the battery |
>7h@25℃ |
Charging time |
<3h@25°℃ |
Charging |
5V/2A |
Boot speed |
~8 seconds |
Automatic shutdown |
Diable(default) |
Operating temperature |
-10°C~50°C |
Storage temperature |
-40°C~70°℃ |
Working humidity |
≤85%RH(Non-condensing) |
Drop |
1.5m |

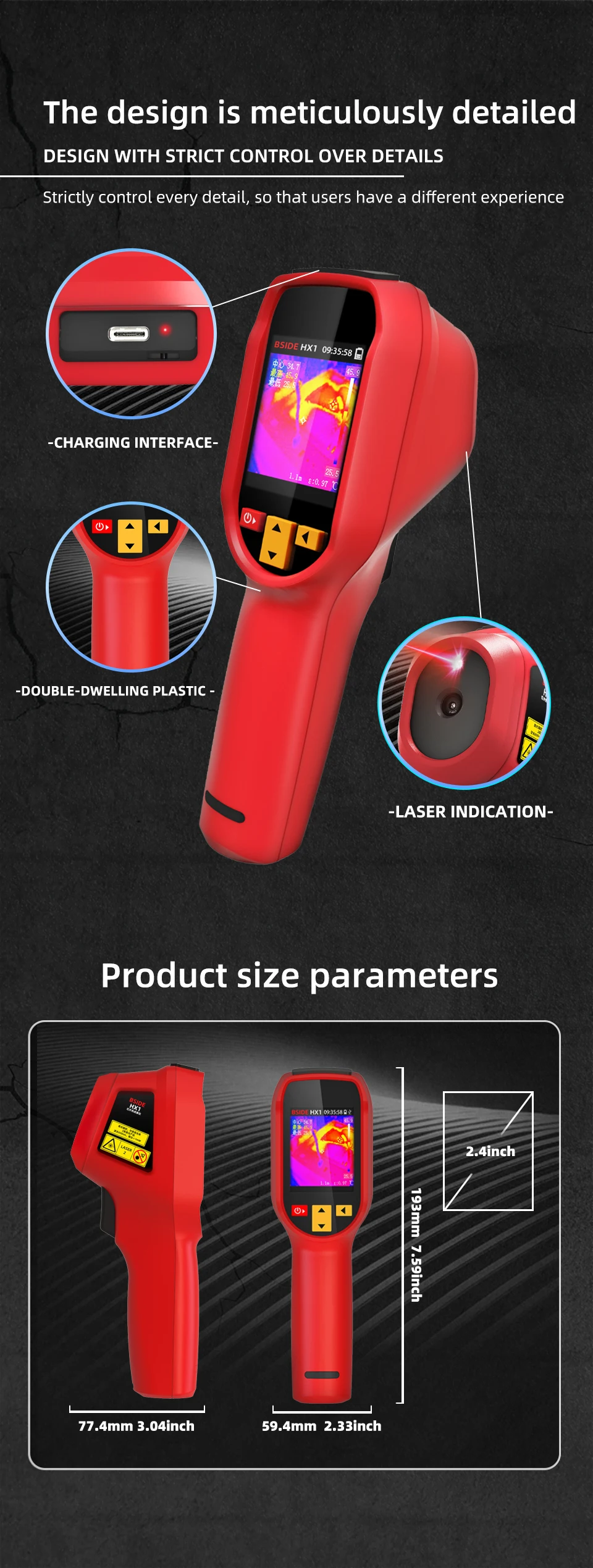

Product dimensions |
193.4*59.4*77.4mm |
Product weight |
277g |

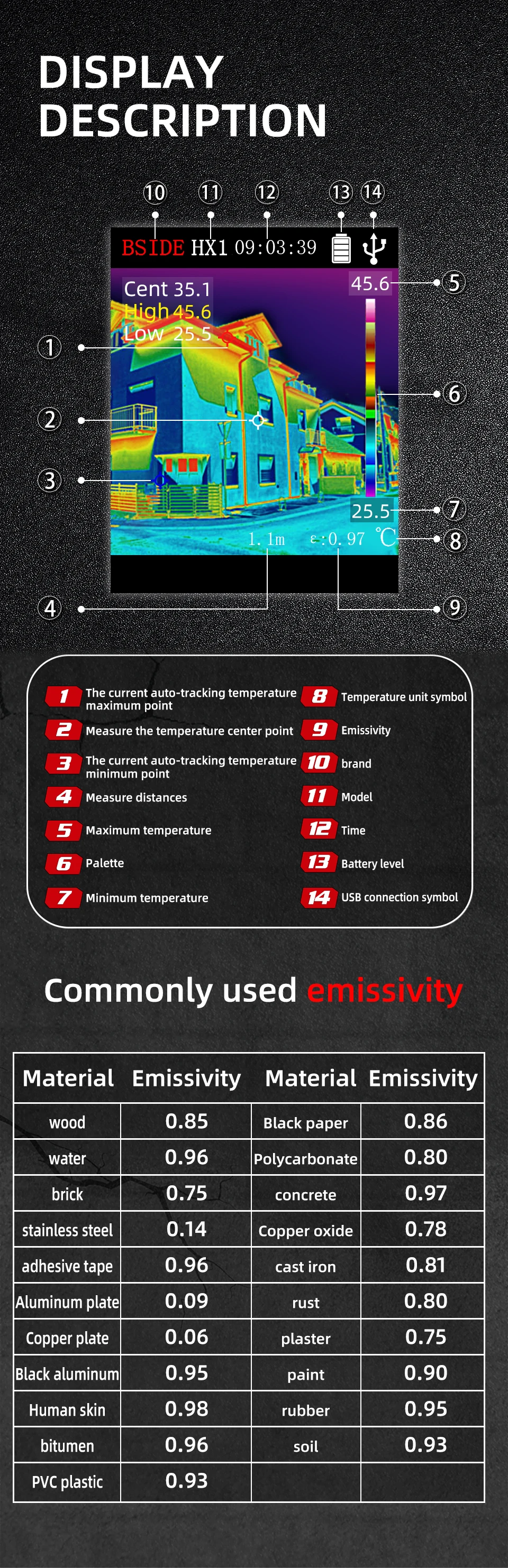

Common Emissivity | |||
Material |
Emissivity |
Material |
Emissivity |
Wood |
0.85 |
Black paper |
0.86 |
Water |
0.96 |
Polycarbonate |
0.8 |
Bricks |
0.75 |
Concrete |
0.97 |
Stainless steel |
0.14 |
Copper oxide |
0.78 |
Tape |
0.96 |
Cast iron |
0.81 |
Aluminium Sheet |
0.09 |
Rust |
0.8 |
Acoin |
0.06 |
Plaster |
0.75 |
Black aluminum |
0.95 |
Paint |
0.9 |
Human Skin |
0.98 |
Rubber |
0.95 |
Asphalt |
0.96 |
Soil |
0.93 |
PVC Plastic |
0.93 |
||
